(New Upgrade) Smart Digital Multimeter with Infrared Temperature Measurement

Get Accurate Measurements with Digital Multimeter

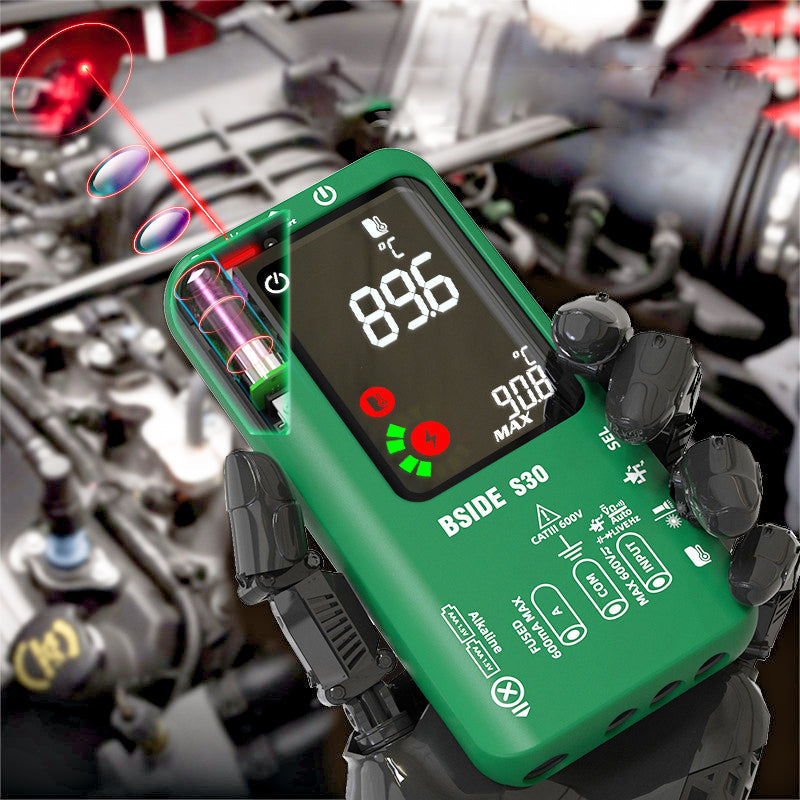

Infrared Thermometer - The digital multimeter can also be used as infrared temperature gun, which can show both the real-time and MAX temperature at the same time, Perfect tools for judging whether the wire is loose or not, the laser pointer can be used as a target location point.

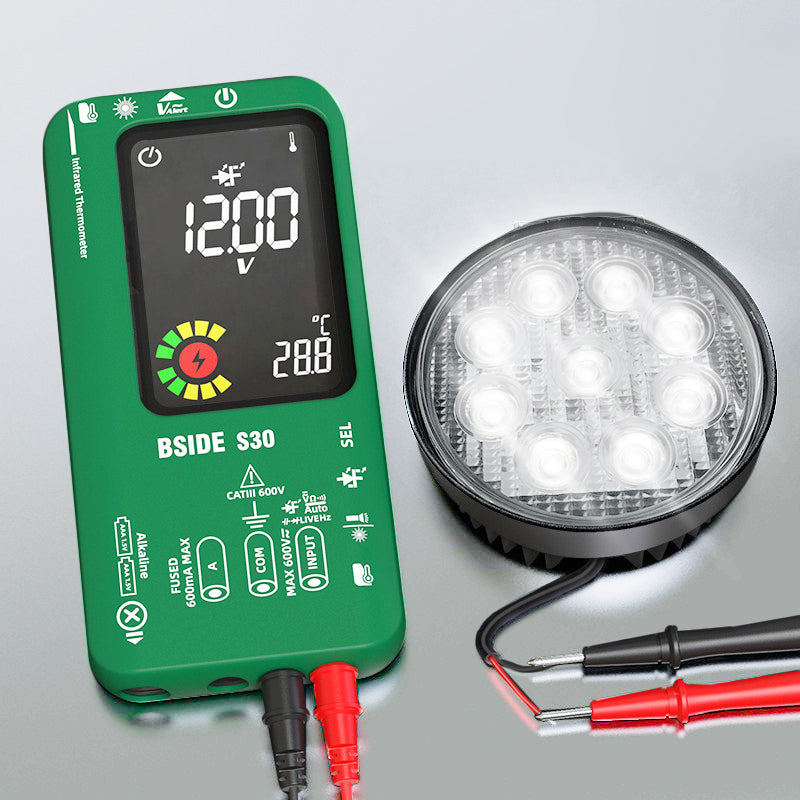

High Voltage Diodes Measurement - The smart digital multimeter can not only test low voltage diodes, but also can test high voltage diodes, such as rectifier diodes, regulator voltage diodes, light-emitting diodes. The tested voltage is up to 15V.

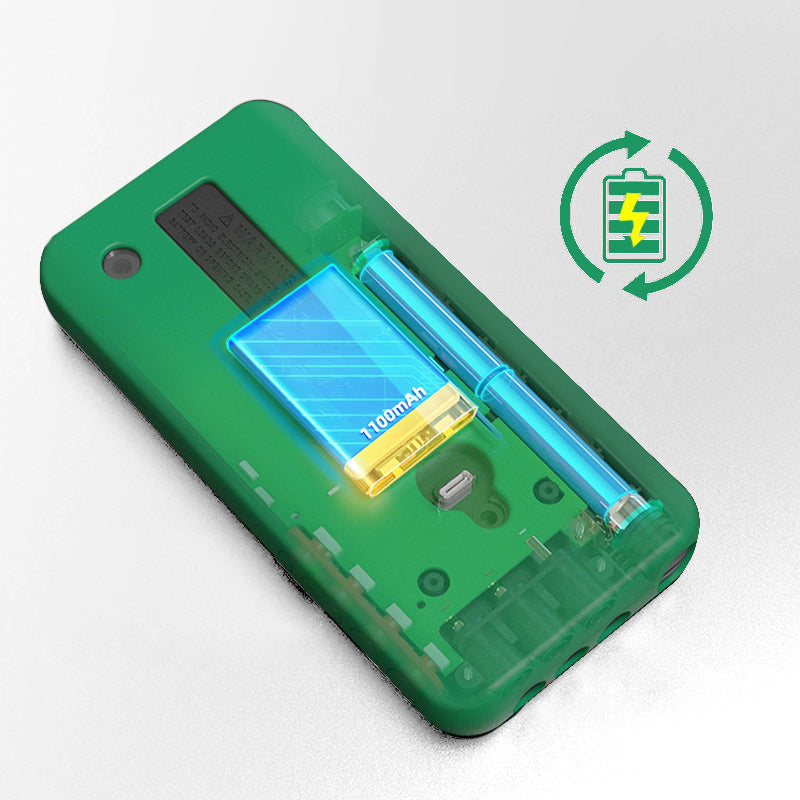

Dual Mode Power System - The digital multimeter tester has 2 separated power systems, one is rechargeable lithium battery, the other is 2 alkaline batteries, you will never worry about no power problem.

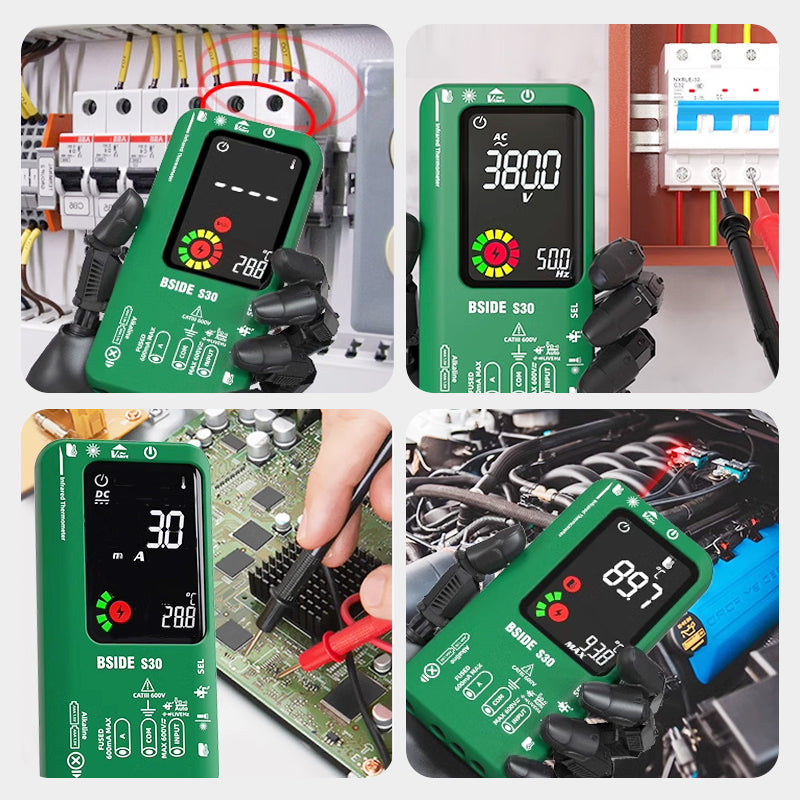

Smart Mode - Intelligent multimeter can automatically measure ac voltage, dc voltage, resistance, continuity with the best solution. All of this functions measurement can be done manually as well.

Protective Case - The electrical voltage tester comes with a durable protective case for protection against shocks, friction and bumps. This case is detachable and easy to replace.

FEATURES

√Pocket digital multimeter tester

√Professional multimeter with infrared thermometer

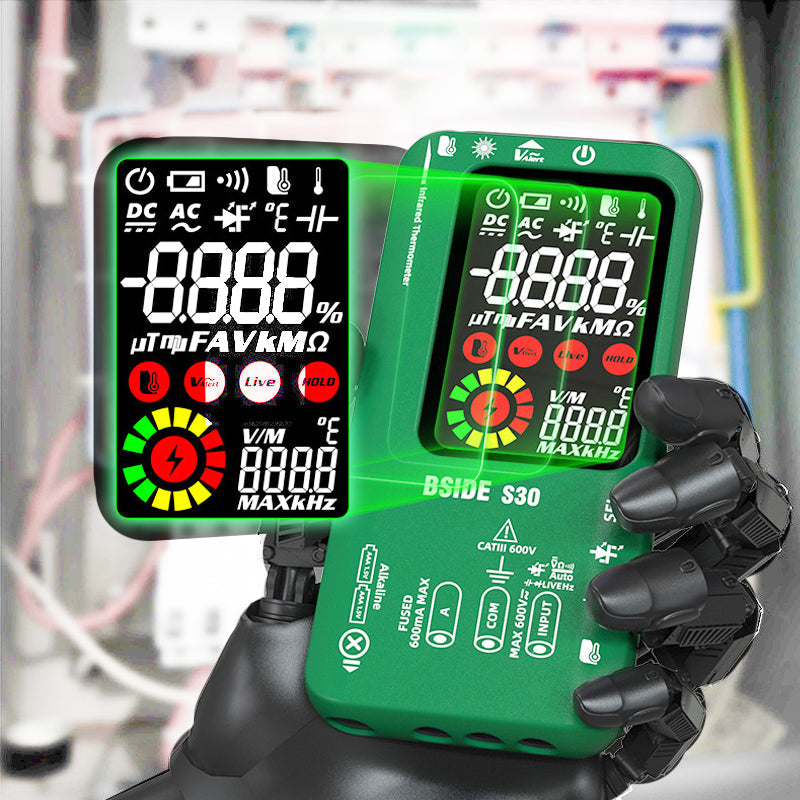

√Rechargeable smart ammeter with color display screen

√Measure high voltage diodes and low voltage diodes

√Measures capacitance, AC and DC current, AC and DC voltage

√Measures, resistance, frequency, continuity, v-alert and live wire check

√Measures environmental temperature, non-contact test real-time and √MAX temperature

√Also can be used as a professional voltage tester with adjustable sensitivity

√Auto range, Auto power off, low battery indication with flashlight

SPECIFICATIONS

Display: 9999 counts

DC Voltage:

0-620V(DC) 0.001V ±(0.8%+3);

0.5-620V(automatic) 0.01V ±(0.8%+3);

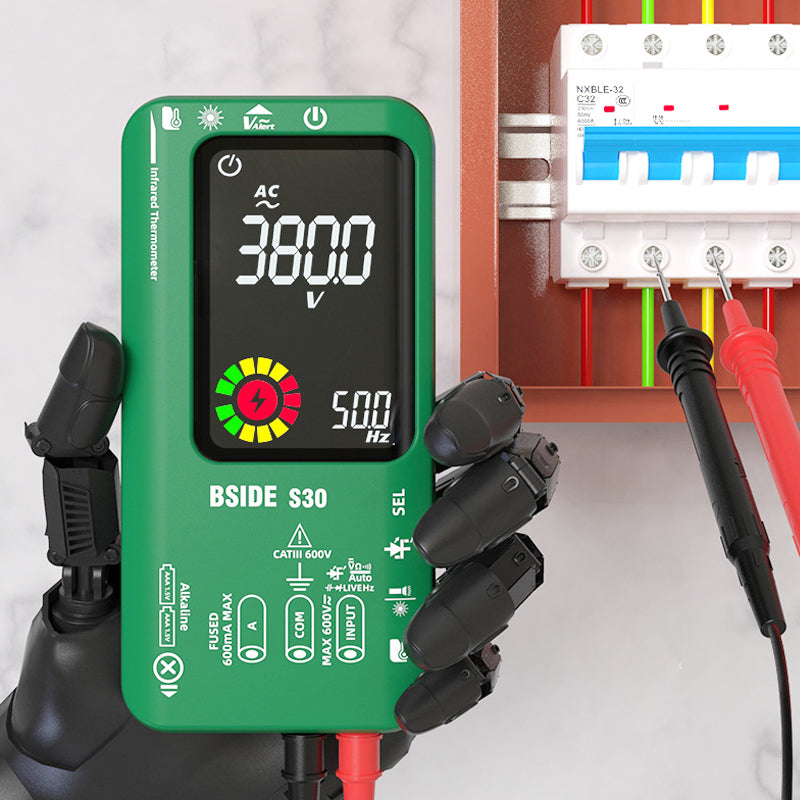

AC Voltage: 0-9.999V 0.001V ±(1.0%+3); 10-99.99V 0.01V ±(1.0%+3); 100-620V 0.1V ±(1.2%+5)

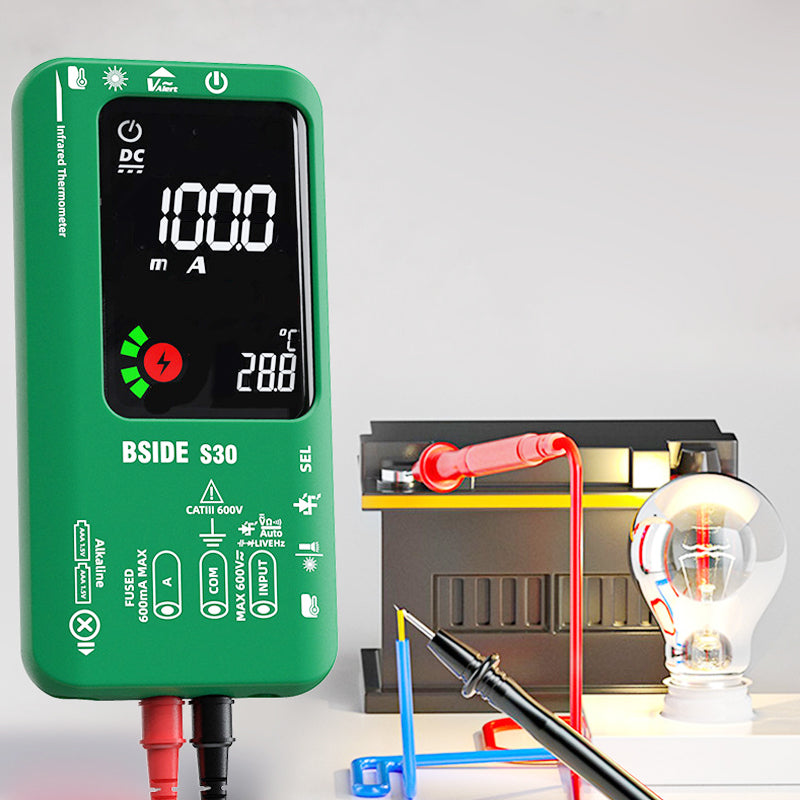

DC Current: 1-610mA 0.1mA ±(1.5%+3)

AC Current: 1-610mA (40-200Hz) 0.1mA ±(2.0%+3)

Resistance:

0-99.9Ω 0.1Ω ±(1.2%+3); 100Ω-9999Ω 1Ω ±(1.2%+3);

Infrared Thermometer: -20℃-0℃ 0.1℃ ±(3%+2℃); 0.1℃-400℃ 0.1℃ ±(2.5%+3℃)

Capacitance: 0.5μF-999.9μF 0.1μF ±(3.5%+8); 1000μF-9999μF 1μF ±(4.5%+10)

Frequency: 10-99.99Hz 0.1Hz ±(1.0%+5); 100-1000Hz 1Hz ±(1.0%+5)

V-Alert (non-contact voltage detection): Yes

Live Wire Check: Yes

Continuity: If the resistance is less than 30Ω, the beeper sounds

Diode:

1) Low Voltage Mode: Measure diodes within 2V

2) High Voltage Mode: Measure diodes up to 15V, current 1mA

Environment Temperature: 0-50℃ 0.1℃ ±2.0℃

Power: 3.7V/110mAh (built-in, rechargeable)

Size: 161*78*22mm

Weight: 245g

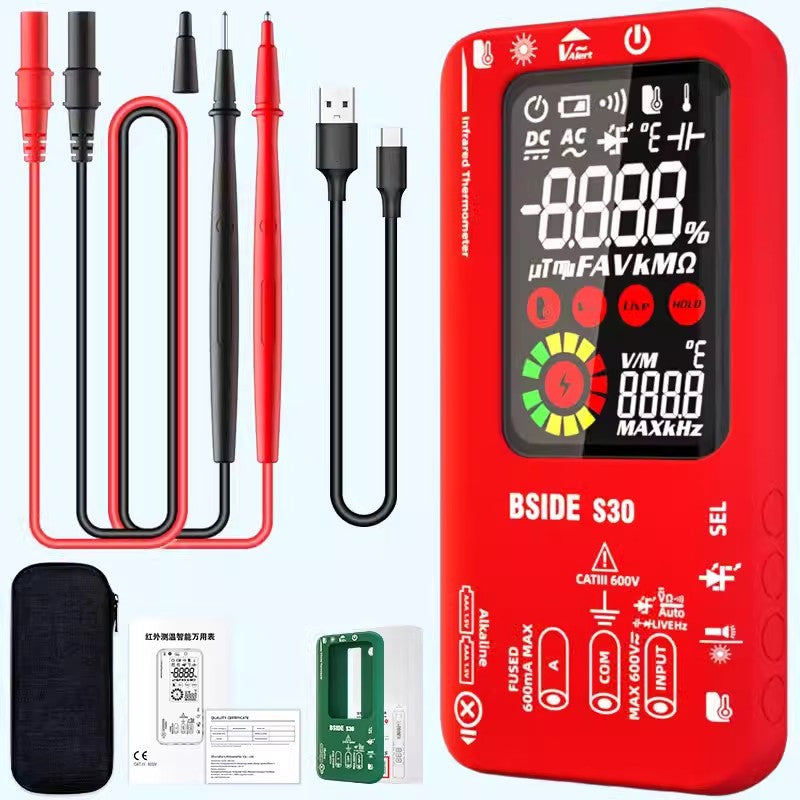

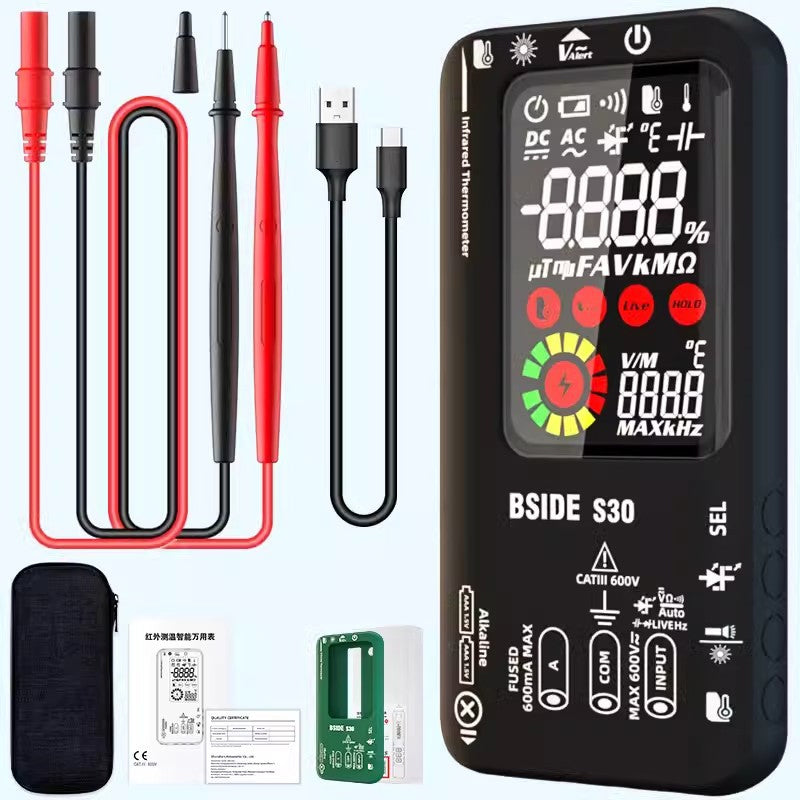

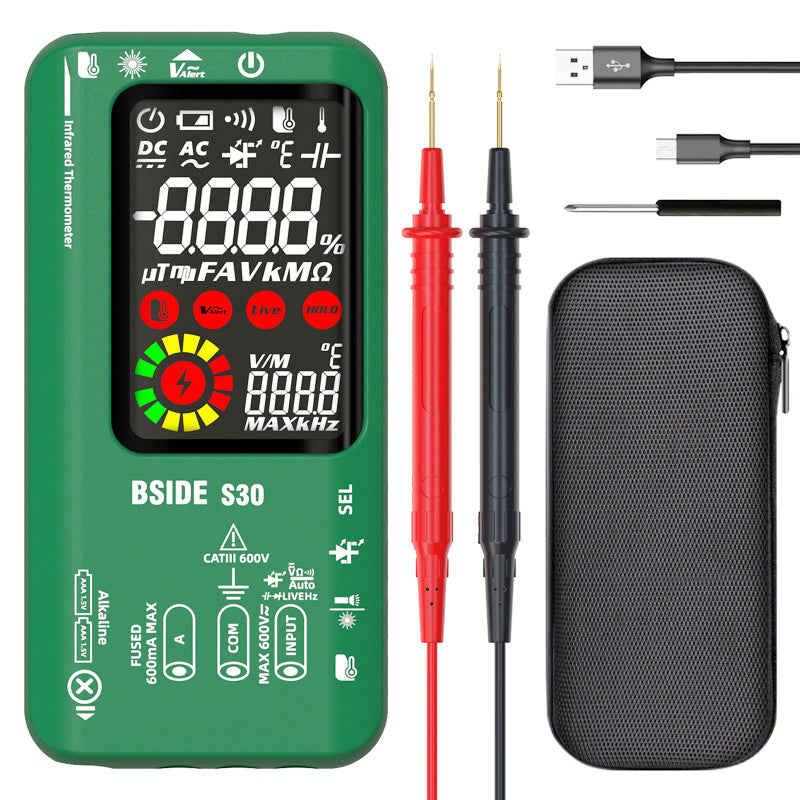

Package Includes:

1 x Multimeter

1 x Test Leads

1 x Charging Cable

1 x Carrying Case

1 x Rechargeable Battery

1 x User Manual
